ECL: Abbreviation for emitter-coupled logic. A high-speed logic family capable of GHz rates. |
EDFA: See Erbium-doped fiber amplifier. |
Edge-emitting Diode: An LED that emits light from its edge, producing more directional output than surface-emitting LED's that emit from their top surface. |
|
Effective Area: The area of a single-mode fiber that carries the light. |
|
EGA: Abbreviation for enhanced graphics adapter. A medium-resolution color standard for computer monitors. |
EIA: Abbreviation for Electronic Industries Association. An organization that sets video and audio standards. |
|
EMI (Electromagnetic Interference): Any electrical or electromagnetic interference that causes undesirable response, degradation, or failure in electronic equipment. Optical fibers neither emit nor receive EMI. |
EMP (Electromagnetic Pulse): A burst of electromagnetic radiation that creates electric and magnetic fields that may couple with electrical/electronic systems to produce damaging current and voltage surges. |
EMR (Electromagnetic Radiation): Radiation made up of oscillating electric and magnetic fields and propagated with the speed of light. Includes gamma radiation, X-rays, ultraviolet, visible, and infrared radiation, and radar and radio waves. |
Electromagnetic Spectrum: The range of frequencies of electromagnetic radiation from zero to infinity. |
|
ELED: See edge-emitting diode. |
Ellipticity: Describes the fact that the core or cladding may be elliptical rather than circular. |
|
EM: Abbreviation for electromagnetic. |
Endoscope: A fiber optic bundle used for imaging and viewing inside the human body. |
E/O: Abbreviation for electrical-to-optical converter. A device that converts electrical signals to optical signals, such as a laser diode. |
|

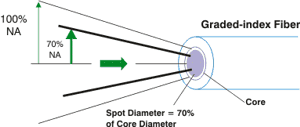

Equilibrium Mode Distribution (EMD): The steady modal state of a multimode fiber in which the relative power distribution among modes is independent of fiber length. |
|

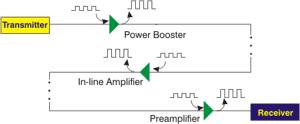

Erbium-doped Fiber Amplifier (EDFA): Optical fibers doped with the rare earth element, erbium, which can amplify light in the 1550 nm region when pumped by an external light source. |
|
| Error Correction: In digital transmission systems, a scheme that adds overhead to the data to permit a certain level of errors to be detected and corrected. |
| Error Detection: Checking for errors in data transmission. A calculation based on the data being sent; the results of the calculation are sent along with the data. The receiver then performs the same calculation and compares its results with those sent. If the receiver detects an error, it can be corrected, or it can simply be reported. |
ESCON: Abbreviation for enterprise systems connection. A duplex optical connector used for computer-to-computer data exchange. |
|

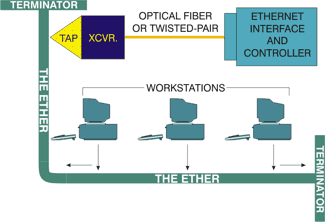

| Ethernet: A standard protocol (IEEE 802.3) for a 10-Mb/s baseband local area network (LAN) bus using carrier sense multiple access with collision detection (CSMA/CD) as the access method. Ethernet is a standard for using various transmission media, such as coaxial cables, unshielded twisted pairs, and optical fibers. |
|
Evanescent Wave: Light guided in the inner part of an optical fiber's cladding rather than in the core, i.e. the portion of the light wave in the core that penetrates into the cladding. |
|
Excess Loss: In a fiber optic coupler, the optical loss from that portion of light that does not emerge from the nominal operation ports of the device. |
External Modulation: Modulation of a light source by an external device that acts like an electronic shutter. |
Extinction Ratio: The ratio of the low, or OFF optical power level (PL) to the high, or ON optical power level (PH): |
Extinction Ratio (%) = (PL/PH) x 100 |
Extrinsic Loss: In a fiber interconnection, that portion of loss not intrinsic to the fiber but related to imperfect joining of a connector or splice. |
Eye Pattern: A diagram that shows the proper function of a digital system. The "openness" of the eye relates to the BER that can be achieved. |
|
